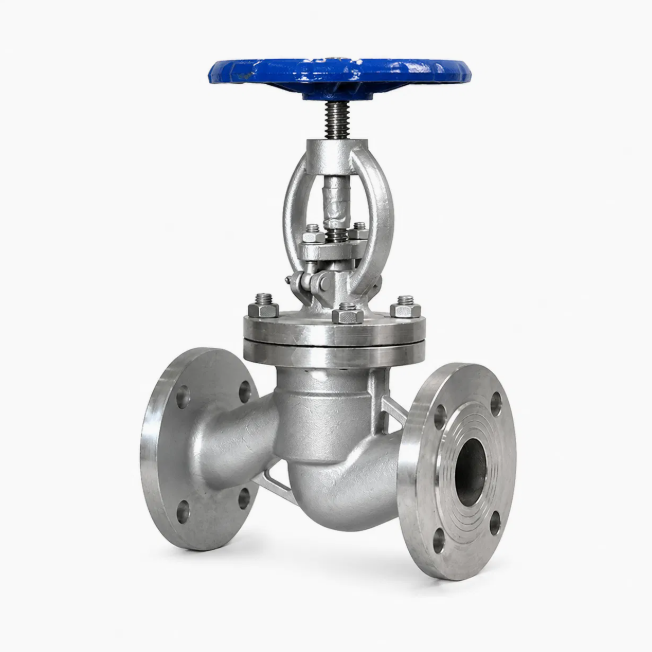

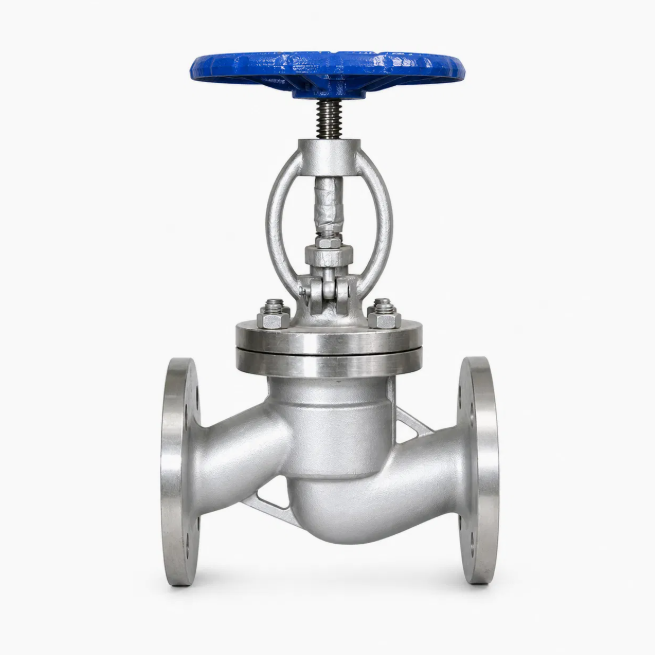

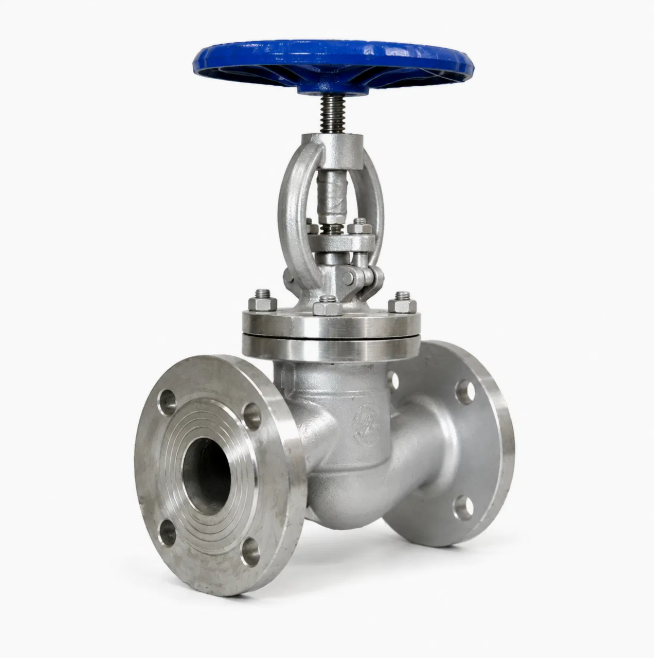

Forged Steel High-Pressure Globe Valve

The J41H Forged Steel High-Pressure Globe Valve is designed for reliable shut-off and throttling control in high-pressure steam, water, gas, and compatible industrial pipeline systems.

Its forged steel body provides high strength and dependable pressure containment for demanding small-bore high-pressure applications. The globe valve design uses linear disc movement along the stem axis, allowing controlled flow adjustment as well as tight shut-off.

The multi-turn rising stem provides clear valve position indication and precise manual control. Cr13 stainless steel sealing surfaces are available for wear-resistant metal-to-metal sealing, while different forged body materials and bonnet configurations can be selected according to pressure, temperature, and medium requirements.

Technical Specifications

Key Features

• Forged steel body for demanding high-pressure service
• Multi-turn rising stem for precise operation and position indication
• Globe valve design suitable for shut-off and throttling control
• Cr13 metal sealing surface for wear and temperature resistance
• Multiple forged carbon steel, alloy steel, and stainless steel options
• Bolted bonnet and pressure-seal bonnet configurations available
• Manual handwheel operation with electric actuator option

Applications

The J41H Forged Steel High-Pressure Globe Valve is suitable for high-pressure steam systems, boiler auxiliary pipelines, high-pressure water and condensate lines, gas distribution and instrument isolation, thermal power plants, petroleum and chemical processing, and other compatible high-pressure industrial services.

ZEMTECH GAS provides product selection support based on valve size, pressure class, body material, flange standard, service medium, operating temperature, sealing surface, bonnet configuration, and operation requirements.
