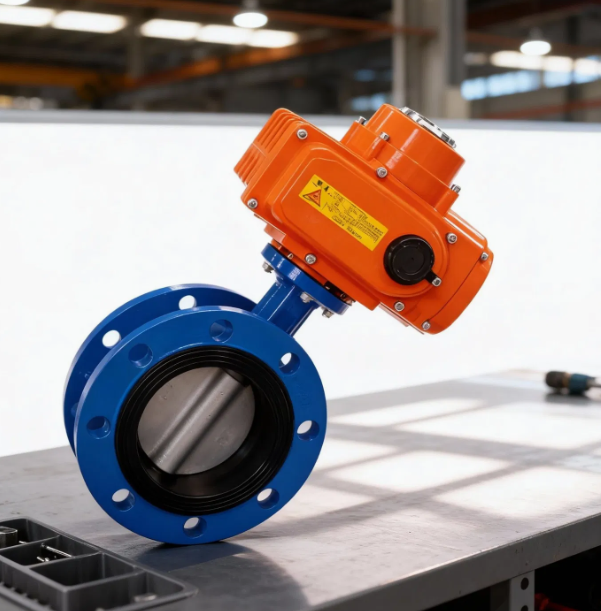

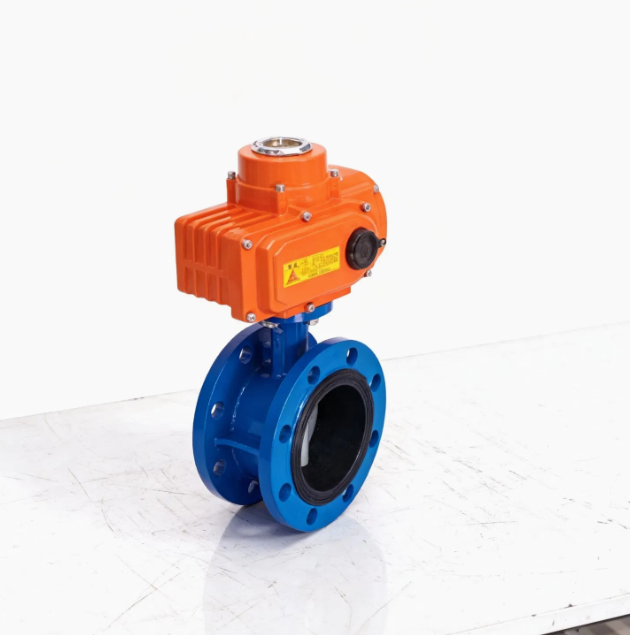

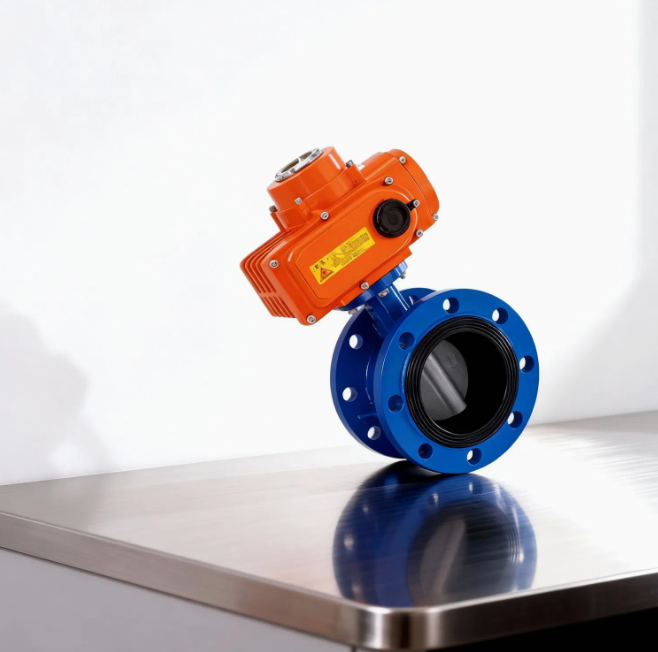

Electric Actuated Flanged Butterfly Valve
D941X electric actuated flanged butterfly valve combines a centerline soft-seated design with reliable automated quarter-turn operation. Suitable for water supply, HVAC, wastewater treatment, municipal pipelines, and large-diameter industrial applications requiring remote or automated control.
- Not sure which product or configuration is suitable? Contact our team to discuss your requirements.
PRODUCT DETAILS
The D941X Electric Actuated Flanged Butterfly Valve is a soft-seated centerline butterfly valve designed for automated isolation and flow control in commercial, municipal, and industrial pipeline systems.
Its flanged body provides a strong and rigid pipeline connection, making it especially suitable for larger valve sizes and applications where stable installation, alignment, and maintenance access are important. The centerline concentric design provides simple quarter-turn operation, low flow resistance, and reliable sealing for compatible media.
The electric actuator supports remote and automated operation without requiring a compressed air supply. On/off and modulating control options are available, with explosion-proof actuator and enhanced enclosure protection options for different project and site requirements.
Technical Specifications
| Valve Type | Electric Actuated Flanged Butterfly Valve |
| Design | Centerline / Concentric, Soft Seated |
| Size Range | DN50-DN1200 |
| Pressure Rating | PN6 / PN10 / PN16 |
| Body Material | Cast Iron, Ductile Iron, Carbon Steel, SS304, SS316 |
| Disc Material | Ductile Iron with Nylon Coating, Carbon Steel, SS304, SS316, Aluminum Bronze |
| Stem Material | SS416, SS304, SS316, 2Cr13 |
| Seat Material | EPDM, NBR, PTFE |
| Actuator | Electric Actuator, On/Off or Modulating |
| Protection Class | IP67 Standard, IP68 Optional |
| Connection | Flanged |
| Typical Applications | Water Supply, HVAC, Wastewater Treatment, Municipal Pipelines, Cooling Water Systems, Industrial Pipelines |
Key Features
- Flanged body for strong and stable pipeline connection
- Centerline concentric design with resilient soft seat
- Electric quarter-turn operation for remote and automated control
- On/off and modulating control options
- Explosion-proof actuator options available
- IP67 standard and IP68 protection option
- Suitable for large-diameter pipeline applications
- Multiple body, disc, stem, and seat material options
Applications
The D941X Electric Actuated Flanged Butterfly Valve is suitable for water supply and distribution systems, wastewater treatment, HVAC systems, municipal pipeline networks, pump stations, cooling water systems, district heating and cooling systems, and compatible industrial process pipelines requiring automated or remote valve control.
ZEMTECH GAS provides product selection support based on valve size, pressure rating, medium, body material, seat material, flange standard, power supply, control mode, control signal, protection class, and project requirements.
TECHNICAL SPECIFICATIONS
Product Specifications
Specifications may vary by model, material, pressure rating and project requirements.
| Model | D941X |
|---|---|
| Size Range | DN50-DN1200 |
| Pressure Rating | PN6 / PN10 / PN16 |
| Body Material | Cast Iron, Ductile Iron, Carbon Steel, SS304, SS316 |
| Seat Material | EPDM, NBR, PTFE |
Quality Control
Products are checked according to order requirements and applicable specifications before delivery
Technical Documentation
Product specifications, technical data, and related documents can be provided based on project requirements
Selection Support
Our team can assist with product selection based on application, medium, pressure, size, and installation requirements
