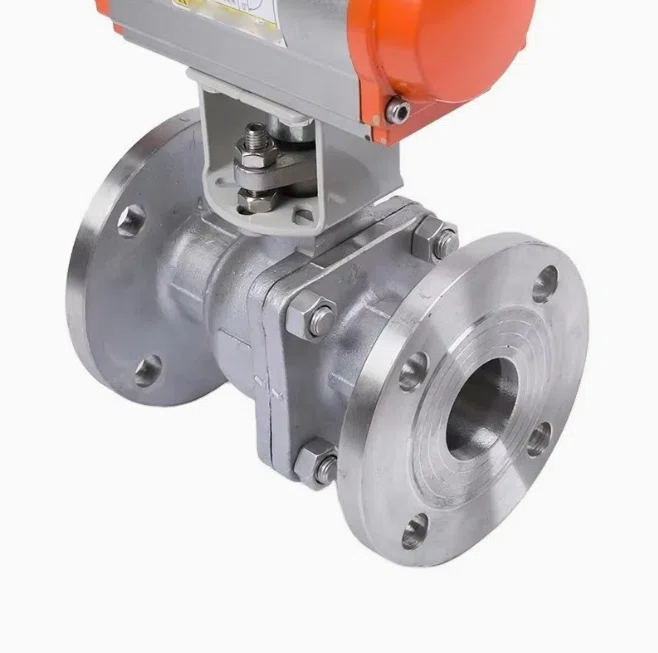

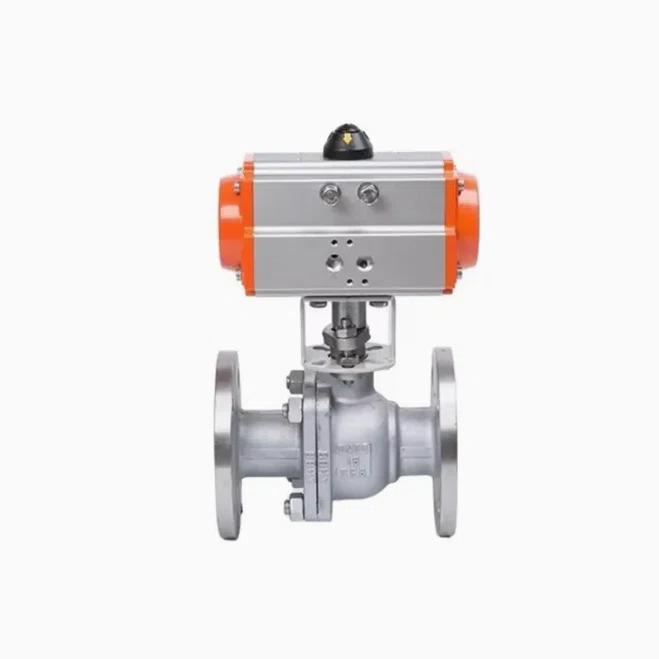

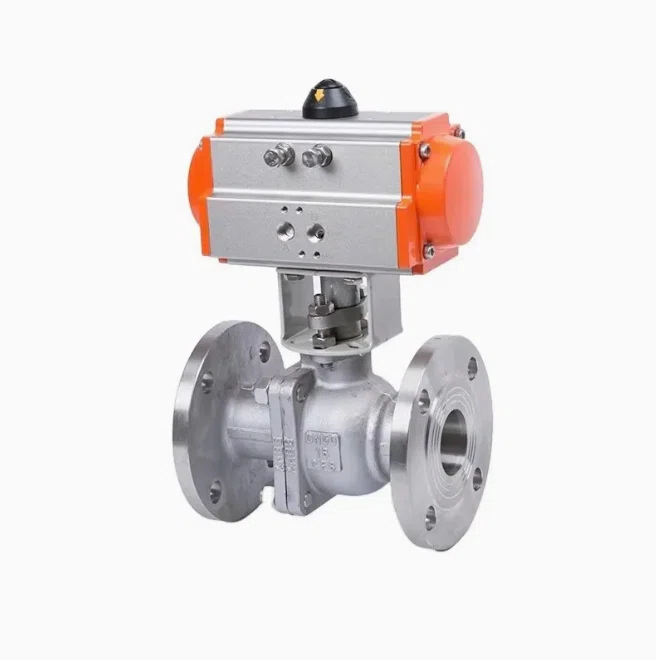

Pneumatic Actuated Flanged Floating Ball Valve
Q641F pneumatic actuated flanged floating ball valve provides fast and reliable automated quarter-turn shut-off for natural gas, LPG, and compatible industrial pipeline systems. Double-acting and spring-return actuator options are available with carbon steel, SS304, SS316, and SS316L body configurations.
- Not sure which product or configuration is suitable? Contact our team to discuss your requirements.
PRODUCT DETAILS
The Q641F Pneumatic Actuated Flanged Floating Ball Valve is designed for fast and reliable automated shut-off in natural gas, LPG, and compatible industrial pipeline systems.
Its two-piece flanged body provides a strong and removable pipeline connection, while the floating ball design uses line pressure to push the ball against the downstream seat for dependable soft-seated isolation.
The pneumatic actuator provides rapid 90-degree quarter-turn operation. Double-acting and spring-return configurations are available, including fail-close and fail-open options for emergency shut-off and process safety applications.
Technical Specifications
| Valve Type | Pneumatic Actuated Flanged Floating Ball Valve |
| Connection | Flanged |
| Size Range | DN15-DN200 |
| Pressure Rating | PN16 / PN25 / PN40 / PN64, ASME Class 150 / 300 |
| Body Material | Carbon Steel, SS304, SS316, SS316L |
| Seat Material | PTFE, Reinforced PTFE, PPL |
| Actuator | Pneumatic Actuator, Double-Acting or Spring-Return |
| Fail-Safe Option | Fail-Close or Fail-Open |
| Typical Air Supply | 4-7 bar Reference |
| Typical Applications | Natural Gas, LPG, Gas Stations, Metering Skids, ESD Systems and Industrial Pipelines |
Key Features
- Pneumatic quarter-turn operation for fast automated shut-off
- Floating ball design for reliable soft-seated sealing
- Double-acting and spring-return actuator options
- Fail-close and fail-open configurations available
- Flanged body for stable installation and easier maintenance
- Carbon steel, SS304, SS316, and SS316L body options
- PTFE, RPTFE, and PPL seat options
- Optional solenoid valve, limit switch box, filter regulator, and positioner
Applications
The Q641F Pneumatic Actuated Flanged Floating Ball Valve is suitable for natural gas distribution pipelines, LPG systems, gas pressure-regulating and metering stations, emergency shut-off systems, skid-mounted equipment, SCADA-controlled stations, and compatible industrial applications requiring fast automated isolation.
ZEMTECH GAS provides product selection support based on valve size, pressure rating, body material, flange standard, seat material, service medium, actuator type, fail-safe mode, air supply pressure, control accessories, and project requirements.
TECHNICAL SPECIFICATIONS
Product Specifications
Specifications may vary by model, material, pressure rating and project requirements.
| Model | Q641F |
|---|---|
| Size Range | DN15-DN200 |
| Pressure Rating | PN16 / PN25 / PN40 / PN64, Class 150 / 300 |
| Body Material | Carbon Steel, SS304, SS316, SS316L |
| Actuator Type | Double-Acting, Spring-Return |
Quality Control
Products are checked according to order requirements and applicable specifications before delivery
Technical Documentation
Product specifications, technical data, and related documents can be provided based on project requirements
Selection Support
Our team can assist with product selection based on application, medium, pressure, size, and installation requirements
