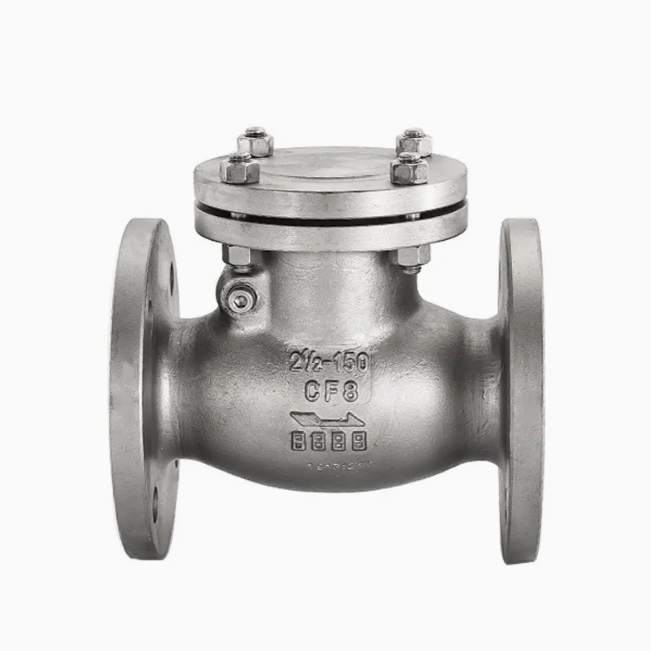

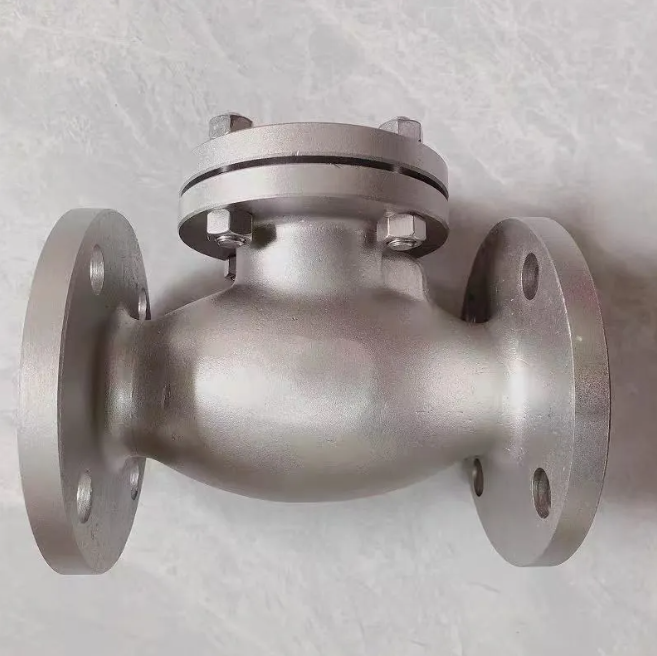

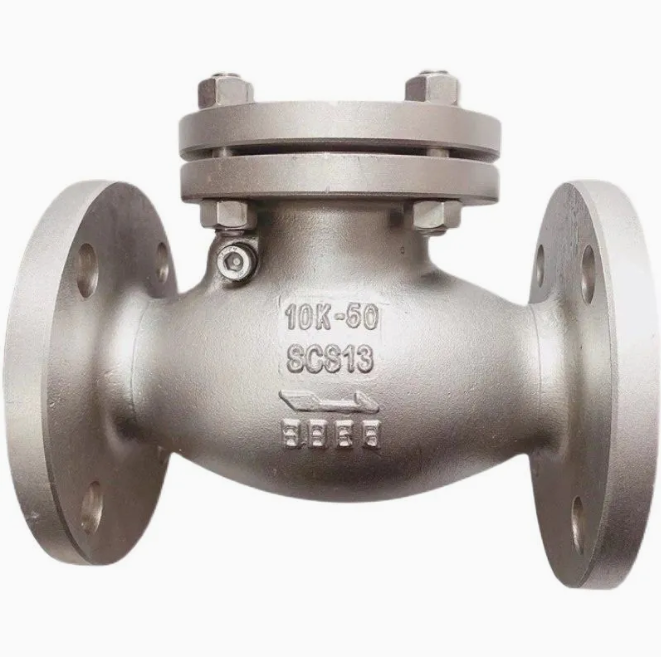

Flanged Swing Check Valve - detail view 3

Flanged Swing Check Valve

Name: Flanged Swing Check Valve | ZEMTECH GAS
SKU: H44H

SKU H44H Category Check Valves Tags Automatic Check Valve, Check Valve, Flanged Check Valve, Flanged Swing Check Valve, H44H, Industrial Check Valve, Large Diameter Check Valve, Non Return Valve, Swing Check Valve

H44H flanged swing check valve provides automatic non-return protection with low pressure drop for steam, water, oil, and compatible industrial pipeline systems. Its hinged-disc design is suitable for medium and large-diameter pipelines, pump discharge lines, HVAC systems, and general industrial applications.

PRODUCT DETAILS

The H44H Flanged Swing Check Valve is designed to provide automatic non-return protection in steam, water, oil, and compatible industrial pipeline systems.

The valve operates automatically without an external actuator. Forward flow swings the hinged disc away from the seat, while reverse flow or pressure loss causes the disc to return to the seat and prevent backflow.

The swing-disc design provides a large flow area and relatively low pressure drop, making the valve especially suitable for medium and large-diameter pipelines. Counterweight-assisted or spring-assisted closing configurations can also be supplied where faster closing response or reduced water hammer is required.

Technical Specifications

Valve Type	Flanged Swing Check Valve
Connection	Flanged
Size Range	DN50-DN1200
Pressure Rating	PN16 / PN25 / PN40 / PN64, ASME Class 150 / 300
Body Material	Ductile Iron, WCB Carbon Steel, CF8, CF8M
Sealing Surface	Cr13 Stainless Steel, Stellite Option
Disc / Hinge Pin	Cr13 Stainless Steel, SS304, SS316
Operation	Automatic Non-Return
Installation	Horizontal or Vertical Pipeline with Upward Flow
Typical Applications	Steam, Water, Oil, Pump Discharge, HVAC and Large Industrial Pipelines

Key Features

Automatic non-return operation without external actuator
Hinged swing-disc design with large flow area
Low pressure drop for medium and large-diameter pipelines
Cr13 metal sealing surface for wear resistance
Flanged connection for stable pipeline installation
Suitable for horizontal and approved vertical installations
Counterweight and spring-assisted closing options available
Suitable for pump, HVAC, steam, water, oil, and industrial systems

Applications

The H44H Flanged Swing Check Valve is suitable for pump discharge lines, compressor systems, steam pipelines, boiler feedwater and condensate systems, oil pipelines, HVAC chilled and heating water systems, and large-diameter industrial pipelines requiring reliable reverse-flow protection with low pressure loss.

ZEMTECH GAS provides product selection support based on valve size, pressure rating, body material, flange standard, service medium, operating temperature, installation orientation, sealing surface, and closing-assistance requirements.

TECHNICAL SPECIFICATIONS

Product Specifications

Specifications may vary by model, material, pressure rating and project requirements.

Model	H44H
Size Range	DN50-DN1200
Pressure Rating	PN16 / PN25 / PN40 / PN64, Class 150 / 300
Body Material	Ductile Iron, WCB, CF8, CF8M
Installation	Horizontal, Vertical Upward Flow

Quality Control

Products are checked according to order requirements and applicable specifications before delivery

Technical Documentation

Product specifications, technical data, and related documents can be provided based on project requirements

Selection Support

Our team can assist with product selection based on application, medium, pressure, size, and installation requirements
