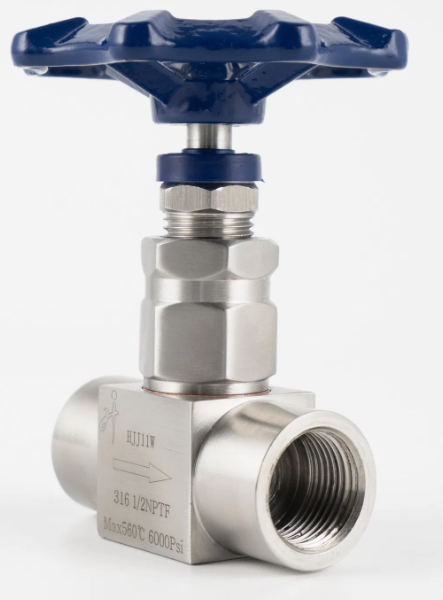

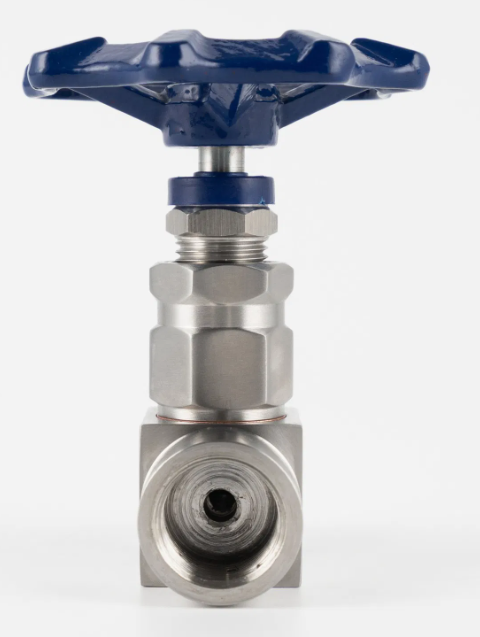

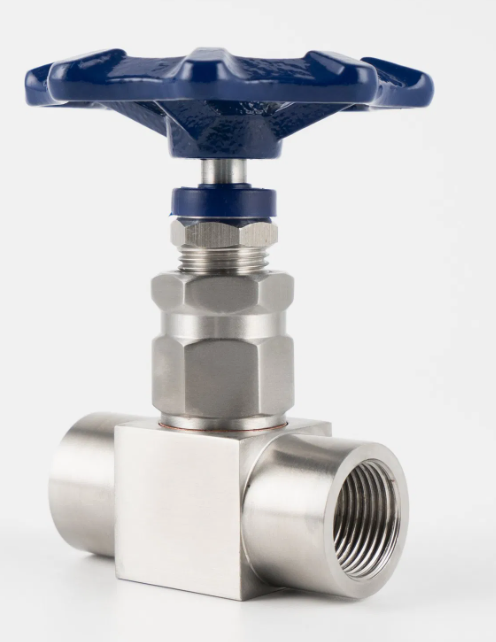

Threaded Globe Valve

Name: Threaded Globe Valve | ZEMTECH GAS
SKU: J11H

SKU J11H Category Globe Valves Tags Forged Steel Globe Valve, Globe Valve, High Pressure Globe Valve, Industrial Globe Valve, J11H, Small Bore Valve, Steam Globe Valve, Threaded Globe Valve, Threaded Valve

J11H threaded globe valve is designed for reliable shut-off and throttling control in steam, water, oil, gas, and compatible industrial pipeline systems. Compact threaded connections and multiple body material options make it suitable for small-bore commercial and industrial applications.

PRODUCT DETAILS

The J11H Threaded Globe Valve is designed for reliable shut-off and throttling control in steam, water, oil, gas, and compatible industrial pipeline systems.

Its threaded connection allows direct installation into small-bore piping without flanges, helping reduce installation space and simplify pipeline layout. The globe valve design uses linear disc movement along the stem axis, making it suitable for both isolation and controlled flow adjustment.

The multi-turn rising stem provides clear valve position indication and precise manual operation. Cr13 stainless steel sealing surfaces provide durable metal-to-metal sealing, while multiple body materials and thread standards are available to meet different pressure, temperature, and medium requirements.

Technical Specifications

Valve Type	Threaded Globe Valve
Connection	Threaded – NPT, BSPT, BSPP / G
Size Range	DN15-DN100
Pressure Rating	PN16-PN320, ASME Class 150-1500
Body Material	A105 Forged Steel, WCB Carbon Steel, CF8, CF8M
Sealing Surface	Cr13 Stainless Steel, Hard-Faced Option
Stem Material	Cr13 Stainless Steel, SS304, SS316
Packing	Flexible Graphite, PTFE Option
Operation	Manual Handwheel, Electric Actuator Option
Typical Applications	Steam, Water, Oil, Gas, Instrument Lines and Industrial Pipelines

Key Features

Compact threaded connection for small-bore pipeline installation
Multi-turn rising stem for precise flow adjustment
Suitable for both shut-off and throttling control
Cr13 metal sealing surface for wear resistance
NPT, BSPT, and BSPP / G thread options
Multiple carbon steel and stainless steel body options
Straight-through and angle-pattern configurations available
Manual handwheel operation with electric actuator option

Applications

The J11H Threaded Globe Valve is suitable for steam systems, water and condensate pipelines, oil and gas process lines, instrument isolation, sampling points, petrochemical systems, power plant auxiliary pipelines, and other compatible small-bore industrial applications.

ZEMTECH GAS provides product selection support based on valve size, pressure rating, body material, thread standard, service medium, operating temperature, sealing surface, and operation requirements.

TECHNICAL SPECIFICATIONS

Product Specifications

Specifications may vary by model, material, pressure rating and project requirements.

Model	J11H
Size Range	DN15-DN100
Pressure Rating	PN16-PN320, Class 150-1500
Body Material	A105, WCB, CF8, CF8M
Thread Type	NPT, BSPT, BSPP / G

Quality Control

Products are checked according to order requirements and applicable specifications before delivery

Technical Documentation

Product specifications, technical data, and related documents can be provided based on project requirements

Selection Support

Our team can assist with product selection based on application, medium, pressure, size, and installation requirements
