Worm Gear Flanged Butterfly Valve
D341X worm gear flanged butterfly valve combines a centerline soft-seated design with geared manual operation for reliable isolation and flow control. Suitable for water supply, HVAC, wastewater treatment, municipal pipelines, and large-diameter industrial applications.
- Not sure which product or configuration is suitable? Contact our team to discuss your requirements.
PRODUCT DETAILS

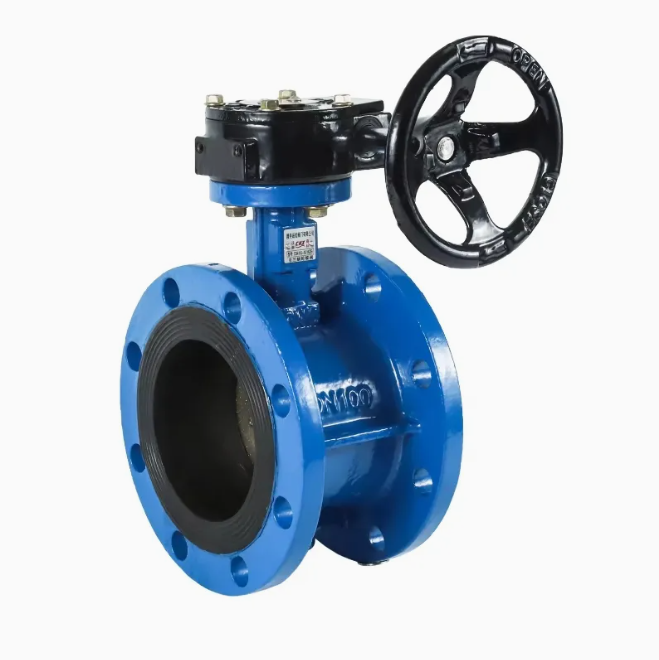

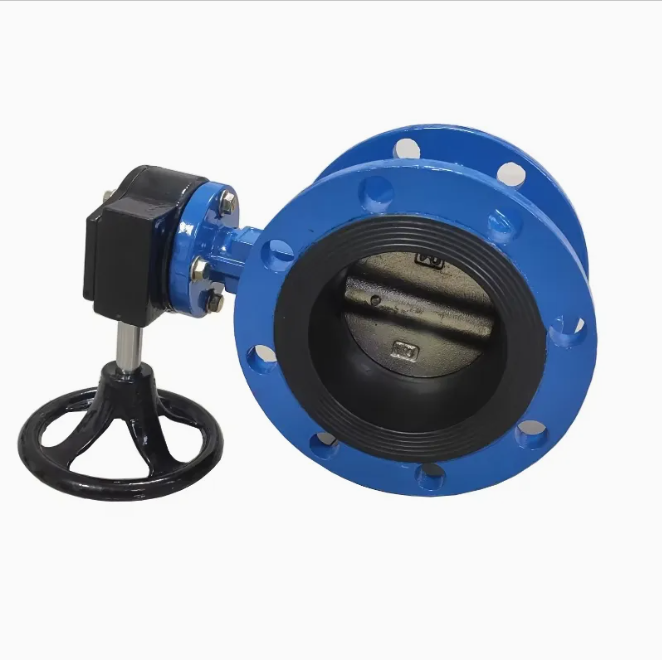

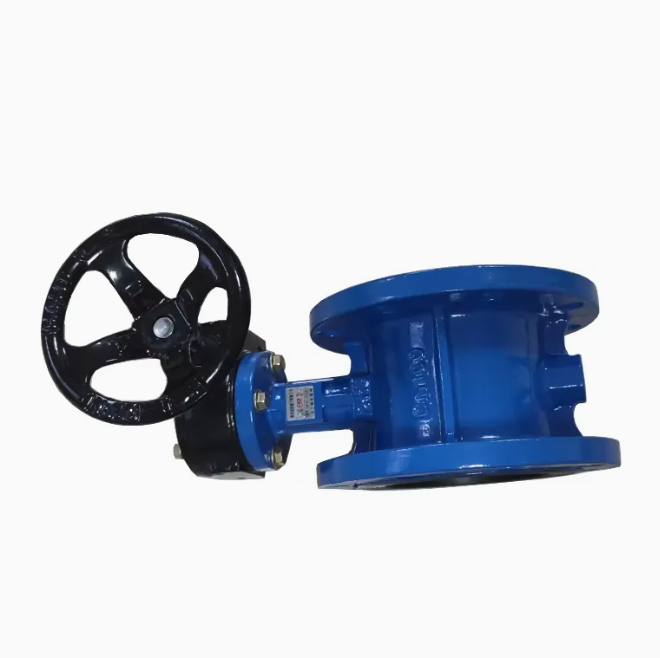

The D341X Worm Gear Flanged Butterfly Valve is a soft-seated centerline butterfly valve designed for reliable isolation and flow control in commercial, municipal, and industrial pipeline systems.
Its flanged body provides a strong and stable pipeline connection, making it suitable for larger valve sizes and applications where rigid mounting and easier alignment are preferred. The centerline concentric design provides simple quarter-turn operation, low flow resistance, and reliable sealing for compatible media.
The worm gear operator provides mechanical advantage, helping reduce manual operating force for larger valve sizes and higher torque requirements. Lockable gearbox and extended stem options may also be available according to project requirements.
Technical Specifications
| Valve Type | Worm Gear Flanged Butterfly Valve |
| Design | Centerline / Concentric, Soft Seated |
| Size Range | DN50-DN1200 |
| Pressure Rating | PN6 / PN10 / PN16 |
| Body Material | Cast Iron, Ductile Iron, Carbon Steel, SS304, SS316 |
| Disc Material | Ductile Iron with Nylon Coating, Carbon Steel, SS304, SS316, Aluminum Bronze |
| Stem Material | SS416, SS304, SS316, 2Cr13 |
| Seat Material | EPDM, NBR, PTFE |
| Operation | Worm Gear Manual Gearbox, Quarter-Turn |
| Connection | Flanged |
| Typical Applications | Water Supply, HVAC, Wastewater Treatment, Municipal Pipelines, Cooling Water Systems, Industrial Pipelines |
Key Features
- Flanged body for strong and stable pipeline connection
- Centerline concentric design with resilient soft seat
- Worm gear operation for reduced manual operating force
- Suitable for large-diameter pipeline applications
- Multiple body, disc, stem, and seat material options
- Lockable gearbox and extended stem options available
- Suitable for water, HVAC, wastewater, and compatible industrial services
Applications
The D341X Worm Gear Flanged Butterfly Valve is suitable for water supply and distribution systems, wastewater treatment, HVAC systems, municipal pipeline networks, pump stations, cooling water systems, district heating and cooling systems, and compatible industrial process pipelines.
ZEMTECH GAS provides product selection support based on valve size, pressure rating, medium, body material, seat material, flange standard, gearbox configuration, and project requirements.
TECHNICAL SPECIFICATIONS
Product Specifications
Specifications may vary by model, material, pressure rating and project requirements.
| Model | D341X |
|---|---|
| Size Range | DN50-DN1200 |
| Pressure Rating | PN6 / PN10 / PN16 |
| Body Material | Cast Iron, Ductile Iron, Carbon Steel, SS304, SS316 |
| Seat Material | EPDM, NBR, PTFE |
Quality Control
Products are checked according to order requirements and applicable specifications before delivery
Technical Documentation
Product specifications, technical data, and related documents can be provided based on project requirements
Selection Support
Our team can assist with product selection based on application, medium, pressure, size, and installation requirements
